5. Latch와 Flip-Flop(set/reset) 구현



원리

D Latch

Clock enable 상태를 유지하는 동안 입력 D값의 변화를 출력한다.



D Flip-Flop

Clock rising edge falling edge에서만 D값으로 출력이 바뀌게 된다. 다른 경우에는

D값이 바뀌더라도 이전 Q값을 그대로 유지한다.





Waveform of D Latch and D flip-flop



Resettable D Flip-Flop

D flip-flop reset 기능이 추가된 D flip-flop이다. Active low에 동작하는 것을 구현 했으며 active low에 동작한다는 말은 reset의 값이 0일 때, reset의 기능을 수행한다는 의미이다.



Set/Resettable D Flip-Flop

D flip-flop reset set 기능이 추가된 D flip-flop이다. Set resetActive low에 동작하며 reset신호가 set신호보다 우선순위를 가지고 있다.



설계 검증

SR latch schematic
SR latch RTL viewer
Waveform



D Latch

D latch schematic
RTL viewer
Waveform



D Flip-Flop

D Flip-Flop schematic



RTL viewer
Waveform



Enabled D Flip-Flop

Enabled D Flip Flop schematic
RTL viewer
Waveform



Resettable D Flip-Flop

Resettable D Flip-Flop schematic
RTL viewer
Waveform

Synchronous Set/Resettable D Flip-Flop

Synchronous Set/Resettable D Flip-Flop schematic
RTL viewer
Waveform



Register

32bits register symbol
RTL viewer
Waveform

Async/Sync Set/Resettable D Flip-Flop

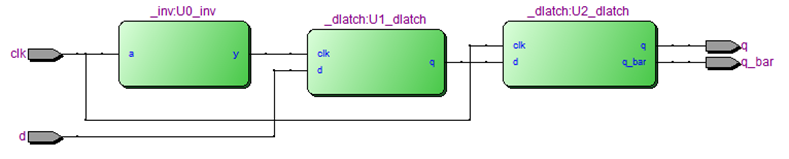

RTL viewer

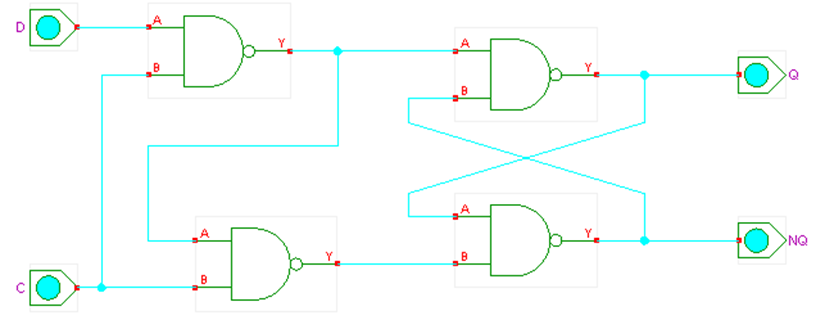

Nand gate 4개를 이용해서 D latch를 구현

////////////////////////////////////////////////////
//ORGANIZATION : Kwangwoon Univ. Computer Engineering
//NAME : Jinhan Shin(sjh900716@gmail.com)
//PLATFORM : Windows 7
//SIMULATOR : ModelSim-Altera 6.5
//COMPILER : Altera Quartus II 11.0 SP1
//TARGET BOARD : Altera DE2-70
//DESCRIPTION : latch, flip-flop
//LAST UPDATE : Dec. 31, 2013
////////////////////////////////////////////////////

module _dff(clk, d, q, q_bar); // d flip-flop

	input		clk,d;
	output	q, q_bar;
	wire		clk_bar,w_q;

	_inv		U0_inv		(.a(clk),.y(clk_bar)); // Instace of inv
	_dlatch	U1_dlatch	(.clk(clk_bar),.d(d),.q(w_q)); // Instace of dlatch
	_dlatch	U2_dlatch	(.clk(clk),.d(w_q),.q(q),.q_bar(q_bar)); // Instace of dlatch

endmodule

module _dff_en(clk, en, d, q); // enable d flip-flop

	input		clk, en, d;
	output	q;

	wire 		w_d;

	mx2	U0_mx2	(.y(w_d),.d0(q),.d1(d),.s(en)); // Instance of mx2
	_dff	U1_dff	(.clk(clk),.d(w_d),.q(q)); // Instance of dff

endmodule

module _dff_r(clk, reset_n, d, q); // resettable d flip flop

	input		clk, reset_n, d;
	output	q;

	wire		w_d;

	_and2		U0_and2	(.a(d),.b(reset_n),.y(w_d)); // Instance of and2
	_dff		U1_dff	(.clk(clk),.d(w_d),.q(q)); // Instance of dff

endmodule

module _dff_rs(clk, set_n, reset_n, d, q); // resettable/settable d flip flop

	input		clk, set_n, reset_n, d;
	output	q;

	wire		w_d1, w_d2;

	_or2		U0_or2	(.a(d),.b(~set_n),.y(w_d1)); // Instance of or2
	_and2		U1_and2	(.a(w_d1),.b(reset_n),.y(w_d2)); // Instance of and2
	_dff		U2_dff	(.clk(clk),.d(w_d2),.q(q)); // Instance of dff

endmodule

module _dff_rs_async(clk, set_n, reset_n,d,q); // reset/settable d flip flop asyncronous

	input		clk, set_n, reset_n, d;
	output	q;
	reg		q;

	always@(posedge clk or negedge set_n or negedge reset_n) // work when clk rising edge or set_n,reset_n falling edge
	begin
		if(reset_n==0)		q<=1'b0;
		else if(set_n==0)	q<=1'b1;
		else					q<=d;
	end
endmodule

module _dff_rs_sync(clk, set_n, reset_n,d,q); // reset/settable d flip flop syncronous

	input		clk, set_n, reset_n, d;
	output	q;
	reg		q;

	always@(posedge clk) // work when clk rising edge
	begin
		if(reset_n==0)		q<=1'b0;
		else if(set_n==0)	q<=1'b1;
		else					q<=d;
	end
endmodule

module _dff_rs_sync_async(clk, set_n, reset_n,d,q_sync,q_async); // instance of syncronous and asyncronous

	input		clk, set_n, reset_n, d;
	output	q_sync, q_async;

	_dff_rs_sync	U0_dff_rs_sync(.clk(clk),.set_n(set_n),.reset_n(reset_n),.d(d),.q(q_sync));
	_dff_rs_async	U1_dff_rs_async(.clk(clk),.set_n(set_n),.reset_n(reset_n),.d(d),.q(q_async));

endmodule

module _dlatch(clk, d, q, q_bar); // dlatch

	input		clk,d;
	output	q, q_bar;
	wire		d_bar, r, s;

	_inv		U0_inv		(.a(d),.y(d_bar)); // Instance of inv
	_and2		U1_and2		(.a(clk),.b(d_bar),.y(r)); // Instance of and2
	_and2		U2_and2		(.a(clk),.b(d),.y(s)); // Instance of and2
	_srlatch	U3_srlatch	(.r(r),.s(s),.q(q),.q_bar(q_bar)); // Instance of srlatch

endmodule
module _register8(clk,d,q); // 8bit register

	input				clk;
	input		[7:0]	d;
	output	[7:0]	q;

	_dff	U0_dff	(.clk(clk),.d(d[0]),.q(q[0])); // Instance of dff
	_dff	U1_dff	(.clk(clk),.d(d[1]),.q(q[1])); // Instance of dff
	_dff	U2_dff	(.clk(clk),.d(d[2]),.q(q[2])); // Instance of dff
	_dff	U3_dff	(.clk(clk),.d(d[3]),.q(q[3])); // Instance of dff
	_dff	U4_dff	(.clk(clk),.d(d[4]),.q(q[4])); // Instance of dff
	_dff	U5_dff	(.clk(clk),.d(d[5]),.q(q[5])); // Instance of dff
	_dff	U6_dff	(.clk(clk),.d(d[6]),.q(q[6])); // Instance of dff
	_dff	U7_dff	(.clk(clk),.d(d[7]),.q(q[7])); // Instance of dff

endmodule

module _register32(clk,d,q); // 32bit register

	input					clk;
	input		[31:0]	d;
	output	[31:0]	q;

	_register8	U0_register8	(.clk(clk),.d(d[7:0]),.q(q[7:0])); // Instance of register8
	_register8	U1_register8	(.clk(clk),.d(d[15:8]),.q(q[15:8])); // Instance of register8
	_register8	U2_register8	(.clk(clk),.d(d[23:16]),.q(q[23:16])); // Instance of register8
	_register8	U3_register8	(.clk(clk),.d(d[31:24]),.q(q[31:24])); // Instance of register8

endmodule

module _srlatch(r,s,q,q_bar); // srlatch
	input r,s;
	output q, q_bar;

	_nor2 U0_nor2(.a(r),.b(q_bar),.y(q));
	_nor2 U1_nor2(.a(q),.b(s),.y(q_bar));

endmodule

//2-input inverter gate
module _inv(a,y);
	input a;
	output y;
	assign y=~a;
endmodule

//2-input nand2 gate
module _nand2(a,b,y);
	input a,b;
	output y;
	assign y=~(a&b);
endmodule

//2-input and gate
module _and2(a,b,y);
	input a,b;
	output y;
	assign y=a&b;
endmodule

//2-input or gate
module _or2(a,b,y);
	input a,b;
	output y;
	assign y=a|b;
endmodule

//2-input exclusive or gate
module _xor2(a,b,y);
	input a,b;
	output y;

	wire w1,w2,w3,w4;

	_inv _inv0(.a(a),.y(w1));
	_inv _inv1(.a(b),.y(w2));
	_and2 _and0(.a(a),.b(w2),.y(w3));
	_and2 _and1(.a(b),.b(w1),.y(w4));
	_or2 _or0(.a(w3),.b(w4),.y(y));

endmodule

//3-input and gate
module _and3(a,b,c,y);
input a,b,c;
output y;
assign y=a&b&c;
endmodule

//4-input and gate
module _and4(a,b,c,d,y);
input a,b,c,d;
output y;
assign y=a&b&c&d;
endmodule

//5-input and gate
module _and5(a,b,c,d,e,y);
input a,b,c,d,e;
output y;
assign y=a&b&c&d&e;
endmodule

//3-input or gate
module _or3(a,b,c,y);
input a,b,c;
output y;
assign y=a|b|c;
endmodule

//4-input or gate
module _or4(a,b,c,d,y);
input a,b,c,d;
output y;
assign y=a|b|c|d;
endmodule

//5-input or gate
module _or5(a,b,c,d,e,y);
input a,b,c,d,e;
output y;
assign y=a|b|c|d|e;
endmodule

//4 bits inverter
module _inv_4bits(a,y);
input [3:0] a;
output [3:0] y;
assign y=~a;
endmodule

//4 bits 2-to-1 and gate
module _and2_4bits(a,b,y);
input [3:0] a,b;
output [3:0] y;
assign y=a&b;
endmodule

//4 bits 2-to-1 or gate
module _or2_4bits(a,b,y);
input [3:0] a,b;
output [3:0] y;
assign y=a|b;
endmodule

//4 bits 2-to-1 exclusive or gate
module _xor2_4bits(a,b,y);
input [3:0] a,b;
output [3:0] y;
_xor2 U0_xor2(.a(a[0]), .b(b[0]), .y(y[0]));
_xor2 U1_xor2(.a(a[1]), .b(b[1]), .y(y[1]));
_xor2 U2_xor2(.a(a[2]), .b(b[2]), .y(y[2]));
_xor2 U3_xor2(.a(a[3]), .b(b[3]), .y(y[3]));
endmodule

//4 bits 2-to-1 exclusive nor gate
module _xnor2_4bits(a,b,y);
input [3:0] a,b;
output [3:0] y;
wire [3:0] w0;
_xor2_4bits U0_xor2_4bits(.a(a), .b(b), .y(w0));
_inv_4bits U1_inv_4bits(.a(w0), .y(y));
endmodule

//32 bits inverter
module _inv_32bits(a,y);
input [31:0] a;
output [31:0] y;
assign y=~a;
endmodule

//32 bits 2-to-1 and gate
module _and2_32bits(a,b,y);
input [31:0] a,b;
output [31:0] y;
assign y=a&b;
endmodule

//32 bits 2-to-1 or gate
module _or2_32bits(a,b,y);
input [31:0] a,b;
output [31:0] y;
assign y=a|b;
endmodule

//32 bits exclusive or gate
module _xor2_32bits(a,b,y);
input [31:0] a,b;
output [31:0] y;
 _xor2_4bits U0_xor2_4bits(.a(a[3:0]), .b(b[3:0]), .y(y[3:0]));
 _xor2_4bits U1_xor2_4bits(.a(a[7:4]), .b(b[7:4]), .y(y[7:4]));
 _xor2_4bits U2_xor2_4bits(.a(a[11:8]), .b(b[11:8]), .y(y[11:8]));
 _xor2_4bits U3_xor2_4bits(.a(a[15:12]), .b(b[15:12]), .y(y[15:12]));
 _xor2_4bits U4_xor2_4bits(.a(a[19:16]), .b(b[19:16]), .y(y[19:16]));
 _xor2_4bits U5_xor2_4bits(.a(a[23:20]), .b(b[23:20]), .y(y[23:20]));
 _xor2_4bits U6_xor2_4bits(.a(a[27:24]), .b(b[27:24]), .y(y[27:24]));
 _xor2_4bits U7_xor2_4bits(.a(a[31:28]), .b(b[31:28]), .y(y[31:28]));
 endmodule

//32 bits exclusive nor gate
module _xnor2_32bits(a,b,y);
input [31:0] a,b;
output [31:0] y;
_xnor2_4bits U0_xnor2_4bits(.a(a[3:0]), .b(b[3:0]), .y(y[3:0]));
_xnor2_4bits U1_xnor2_4bits(.a(a[7:4]), .b(b[7:4]), .y(y[7:4]));
_xnor2_4bits U2_xnor2_4bits(.a(a[11:8]), .b(b[11:8]), .y(y[11:8]));
_xnor2_4bits U3_xnor2_4bits(.a(a[15:12]), .b(b[15:12]), .y(y[15:12]));
_xnor2_4bits U4_xnor2_4bits(.a(a[19:16]), .b(b[19:16]), .y(y[19:16]));
_xnor2_4bits U5_xnor2_4bits(.a(a[23:20]), .b(b[23:20]), .y(y[23:20]));
_xnor2_4bits U6_xnor2_4bits(.a(a[27:24]), .b(b[27:24]), .y(y[27:24]));
_xnor2_4bits U7_xnor2_4bits(.a(a[31:28]), .b(b[31:28]), .y(y[31:28]));
endmodule

//2-input nor gate
module _nor2(a,b,y);
input a,b;
output y;
assign y=~(a|b);
endmodule


module mx2 (y, d0, d1, s); // 2-to-1 multiplexer module

	input d0, d1, s;   // input
	output y;          // output

	wire w0,w1,sb;     // wire

	iv iv0(.a(s),.y(sb));     // inverter :iv0 a-> s, y-> sd
	nd2 nd20(.a(d0),.b(sb),.y(w0)); // nand: nd20 a->d0, b->sb, y->w0
	nd2 nd21(.a(d1),.b(s),.y(w1)); // nand: nd21 a->d1, b->s, y->w1
	nd2 nd22(.a(w0),.b(w1),.y(y)); // nand: nd22 a->w0, b->w1, y->y

endmodule

module iv(a,y);   // inverter module

	input a;  // input
	output y; // output

	assign y=~a;  // inverter

endmodule

module nd2(a,b,y); // nand module

	input a,b;  // input
	output y;    // output

	assign y=~(a&b); // nand

endmodule
